Product description

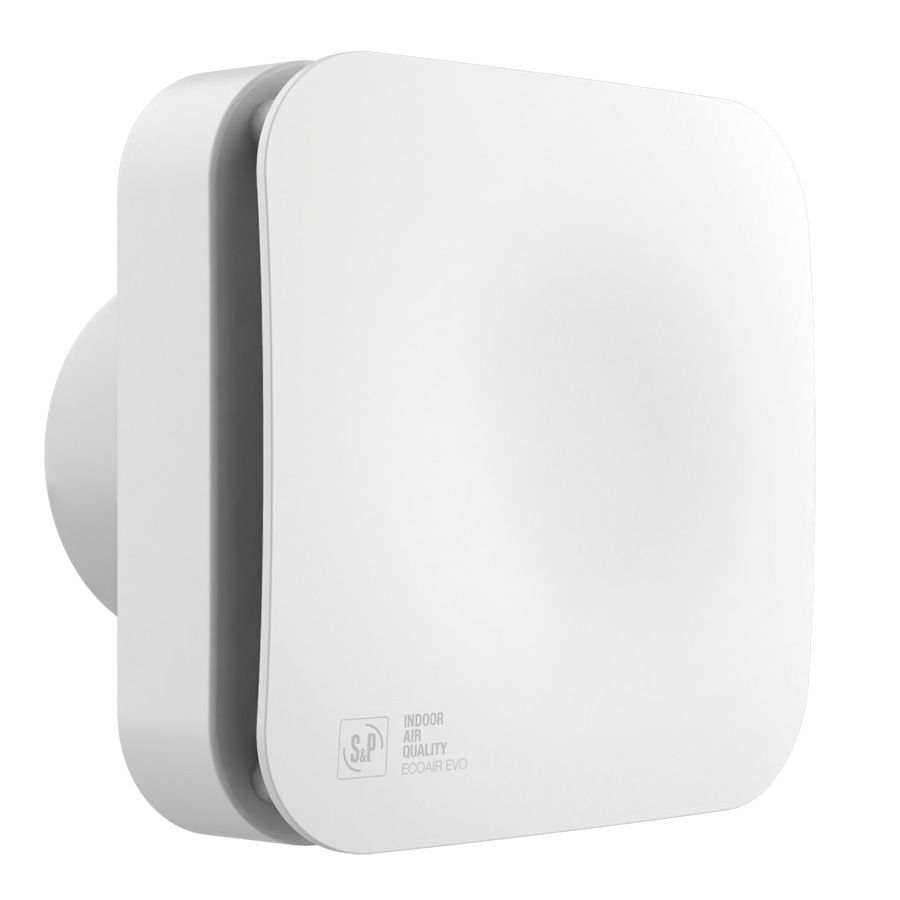

The S&P ECOAIR EVO HT is a low profile, quiet constant running, powerful ventilation unit which is flexible to meet the requirements of all wet rooms in a property including a kitchen, bathroom, utility, en-suite and WC.

The ECOAIR EVO HT is almost silent on trickle mode, starting below 9 dB(A). The dMEV fan has a maximum airflow of 30 l/s (108m3/hr) and is SAP PCDB listed achieving a market leading low SFP of down to 0.08 W/l/s. With it’s low watt DC motor, the ECOAIR EVO HT provides reduced energy consumption while increasing efficiency and performance.

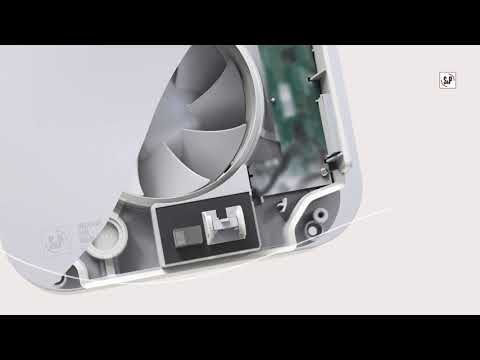

ECOAIR EVO HT has been aerodynamically designed to provide the best performance using limited constant volume technology to prevent nuisance running. Constant volume technology ensures that the selected airflow rate is able to be achieved at a range of pressures without manual adjustments.

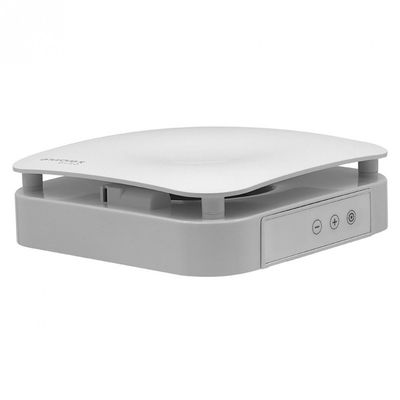

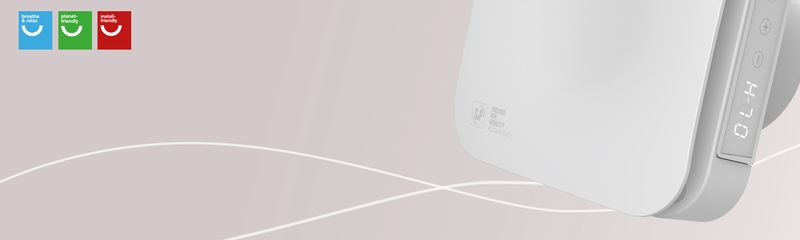

The display on the side of the unit offers the user the ability to control the unit, including the fan, speed, timer, humidity control, current running status, as well as viewing the period of time the fan has been in operation and any potential errors identified. ECOAIR EVO HT also include an automatic intelligent relative humidity sensor that enables the fan to vary its speed depending upon the humidity level that has been measured. The automatic intelligent timer mode automatically varies the over-run period depending upon how long the fan has been in operation

Key features

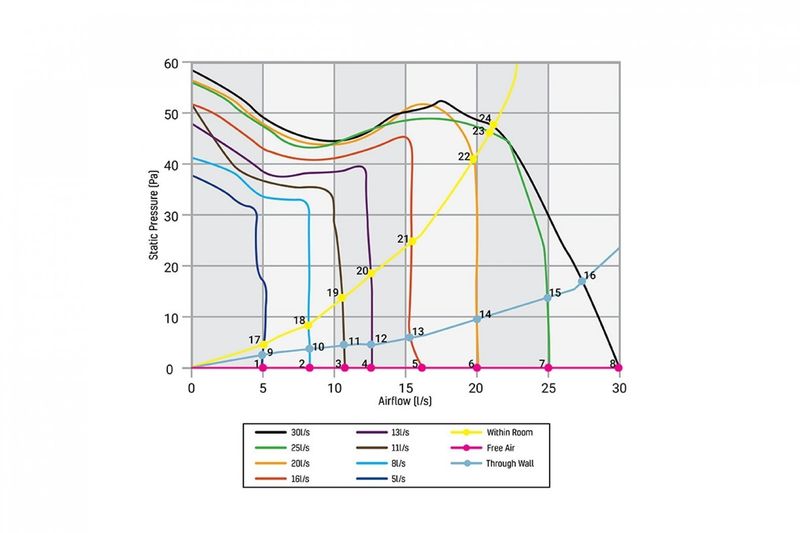

• Trickle speeds of 5, 8, 11, 13 and 16l/s
• Selectable boost speed between 20 and 30l/s which can be controlled using the side display
• Quiet running, as low as 9 dB(A) at 3 meters
• Constant volume with a limiter to prevent nuisance running
• Low maintenance with no filter requirement
• Low watt DC motor provides reduced energy consumption and increased efficiency
• Best in class and SAP PCDB listed down to 0.08 W/l/s
• Integral controls via a display on the side of the unit
• The display offers the user the ability to control the fans trickle speed, boost speed, timer, and humidity level without opening up the fan
• Hour run counter to enable landlords to monitor operational life
• 5 year warranty
